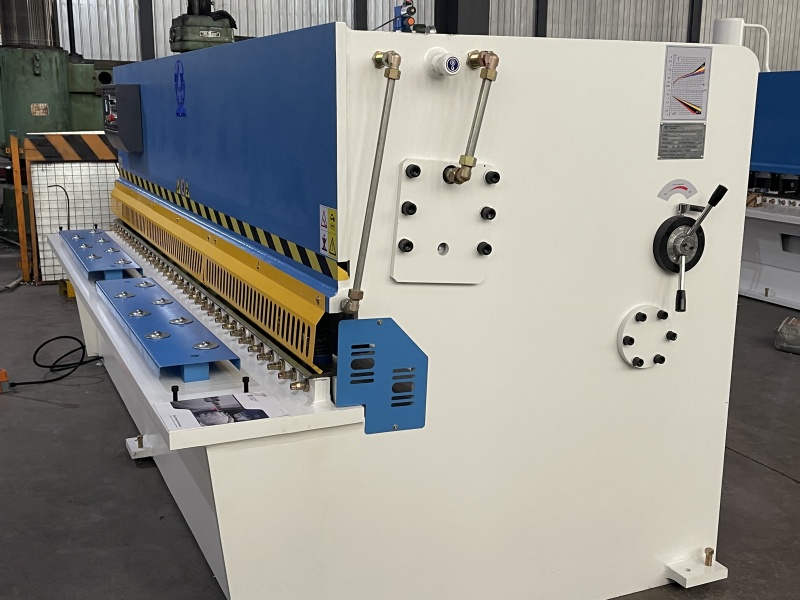

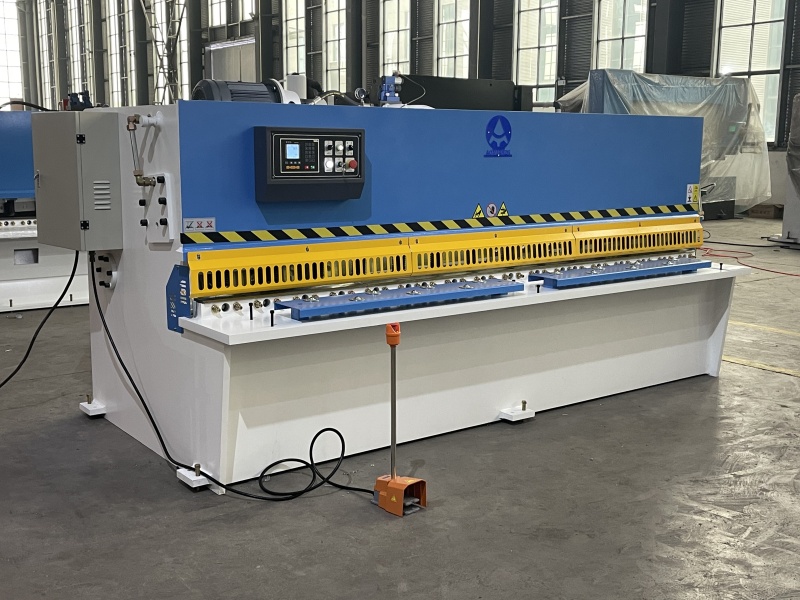

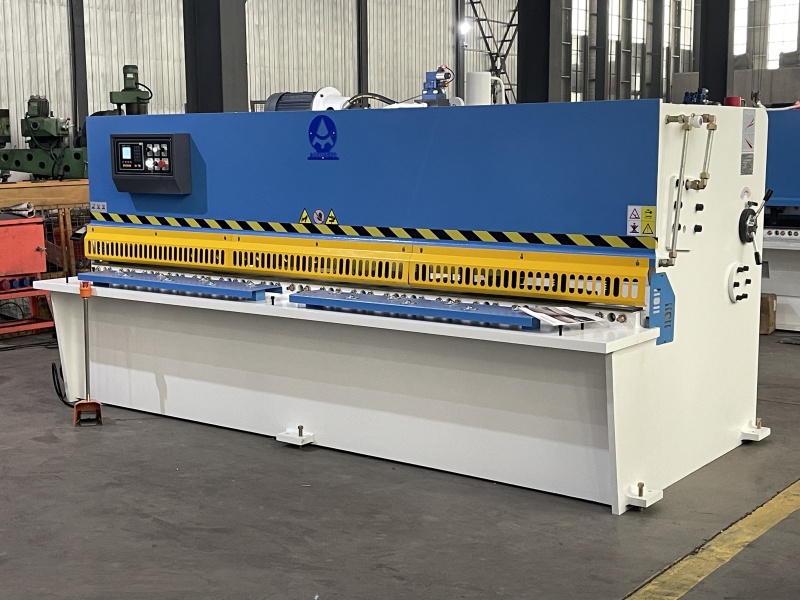

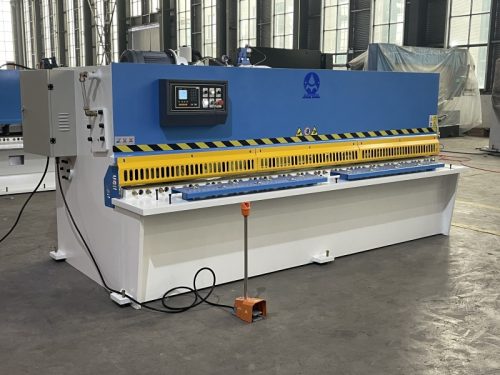

6mm Thickness Metal Sheet Hydraulic Shearing Machine 3200mm
Product Details
Place of Origin: China
Brand Name: AOXUANZG
Certification: CE
Model Number: QC11Y-6X3200
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Packaging Details: Standard export packing
Delivery time: 30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/Year
Introduce：
QC11Y series hydraulic shearing machine is suitable for cutting carbon steel, stainless steel, galvanized sheet, aluminum and many other metals. It is widely used in metal processing industry, machine building industry, building construction, mining industry, railway construction and aerospace industry.
Main Features:
2-Multi-work-stop programming function is able to achieve an automatic operation and continues positing of multi-step procedures,
as well as an automatic precision adjustment for positions of rear stopper and gliding block.
3-The machine is provided with bend counting function, for a real-time display of processing quantity and power-failure memory of
positions of stopper and gliding block, as well prccedures and paremeters.
4-Imported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear
stopper, for processing precision of machine to be higher.
Standard equipment:
Estun E21S CNC control System
Powered Back gaugeX-axis
DELTA Inverter controlled back gauge
HIWIN Ball screws & Polished rod with 0,05mm accuracy
Squaring Arm and Front Support Arms
Germany Bosch-Rexroth Hydraulic
Germany EMB Tubing connector
Germany Siemens Main Motor

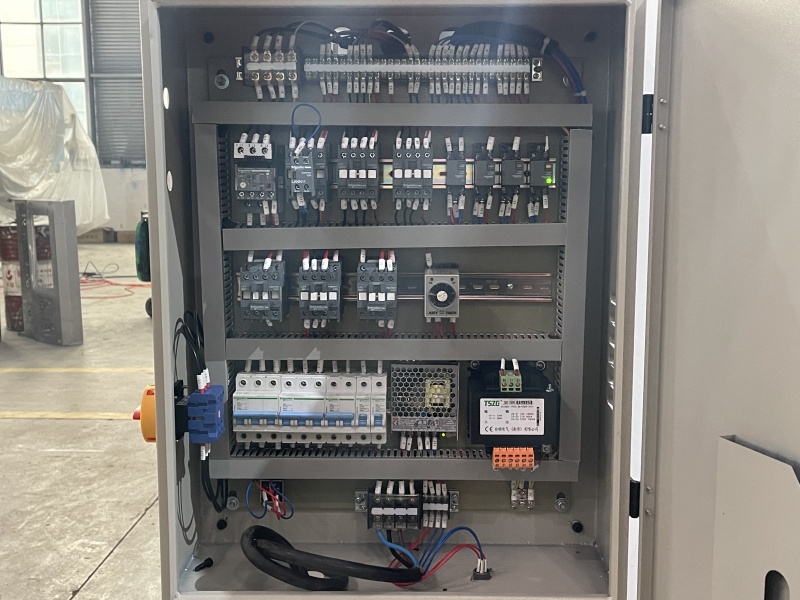

Schneider Electrics
Hydraulic &Electrical overload protection
Cutting Line illumination and wire for shadow line cutting
Top blade with four cutting edges and bottom blade with four cutting edges.(6CrW2Si)

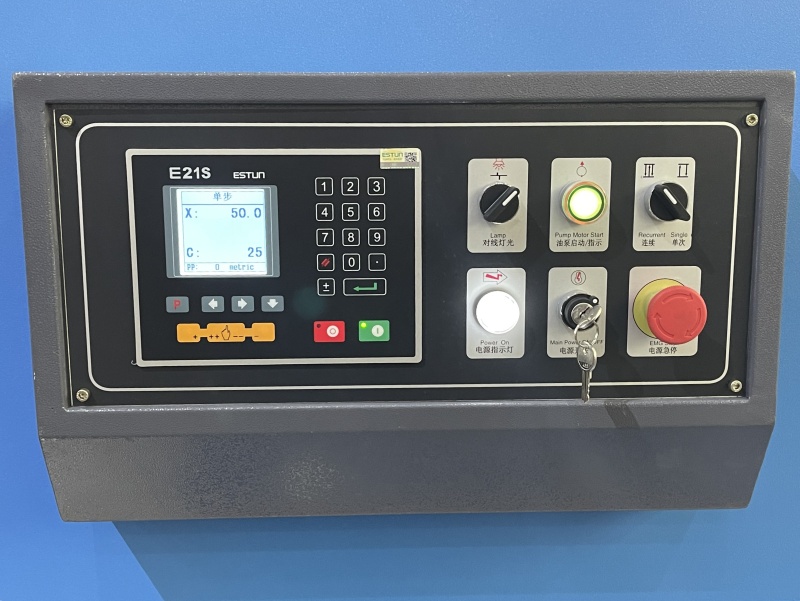

E21S control system:
Backgauge and block control
◎Control for general AC motors,frequency inverter
◎intelligent positioning
◎Holding/decompression time setting
◎Program memory of up to 40 programs
◎Up to 25 steps per program
◎One side positioning
◎Retract function
◎One key backup/restore of parameters Chinese/English
Parameter:
Customer praise：
Machine CE Certificate:
Exhibition:

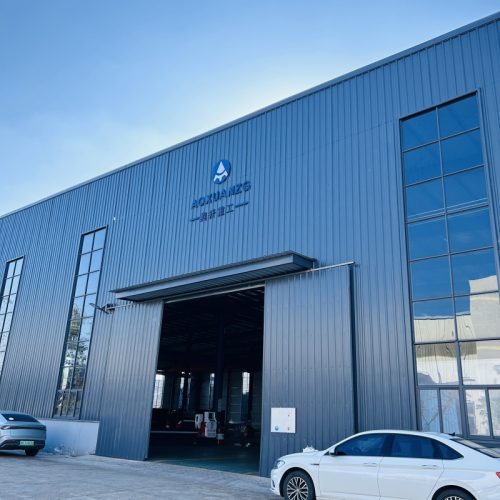

Our factory:
Packing and delivery:
Our service:
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non – human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
