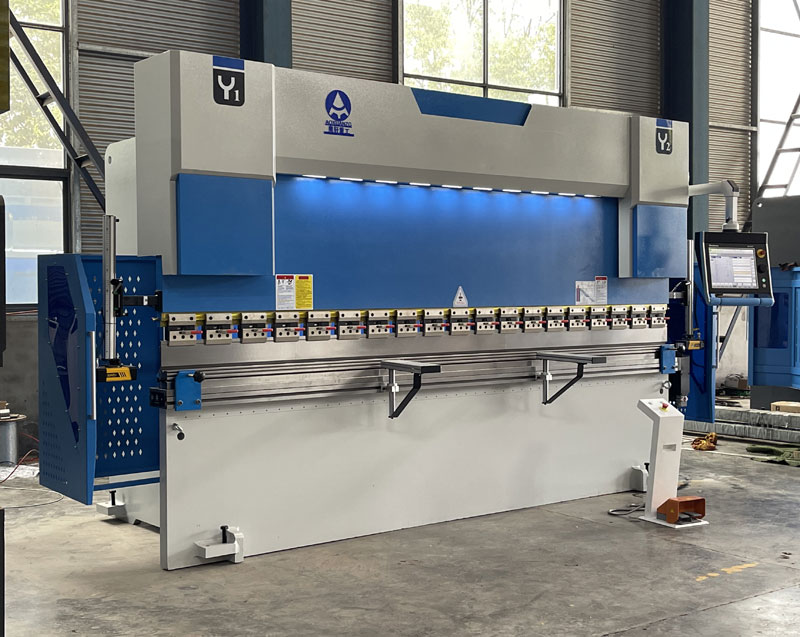

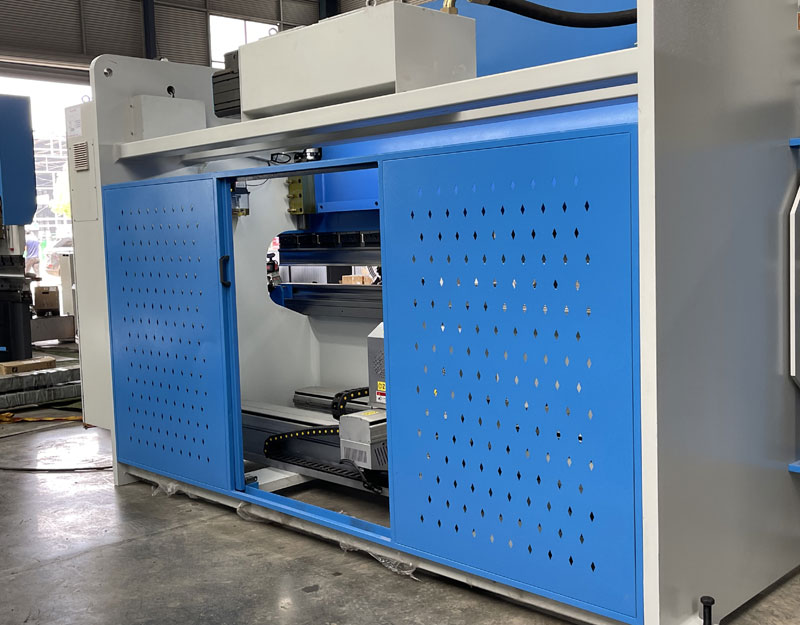

High efficiency energy saving servo main motor 160T4000MM CNC electro-hydraulic press brake with DA69T 8+1 axis
Product Details
Place of Origin: China
Brand Name: AOXUANZG
Certification: CE
Model Number: WE67K-160T4000
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: $48600-50000/unit
Packaging Details: Standard export packing
Delivery time: 30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/Year
Press brake is a machine capable of bending plates, which has a wide range of applications and uses:
1. In the electric power industry, the shearing machine can cut the plates into different sizes, and then process them again through the Press brake, such as computer cases, electrical cabinets, refrigerator air-conditioning shells, etc. are all made in this way;
2. In the decoration industry, high-speed CNC shearing machines are widely used, generally used in conjunction with CNCPress brake, to complete the production of stainless steel plates, doors and windows, and decoration in some special places;
3. In the automobile and shipbuilding industry, large-scale CNC hydraulic shearing machines are generally used, mainly to complete the shearing work of the plate, and then perform secondary processing, such as welding, bending, etc.;
4. In the kitchen and catering industry, stainless steel kitchen utensils of various varieties and specifications are then subjected to secondary processing, such as welding, bending, etc.;
5. In the aerospace industry, high precision is generally required, and high-precision CNC shearing machines and Press brake can be selected, which are accurate and efficient;
6. In the wind power communication industry, wind power generation poles, road light poles, communication tower poles, traffic light poles, traffic signal poles, monitoring poles, etc. are bent;
Press brake:160T 4000 mm
Controller : Delem DA69T
Axis:8+1 axis (Y1 , Y2 , Z1 , Z2 , X1 , X2 , R1 , R2, +compensation)
Clamp: Fast clamp
Die: Standard upper punch & Standard Matrix lower die & Customized die (Optional)
Ball screw & linear guide:HIWIN,Taiwan
Hydraulic valve:Rexroth,Germany
Grating ruller:GIVI Italy
Tubing connector:EMB,Germany

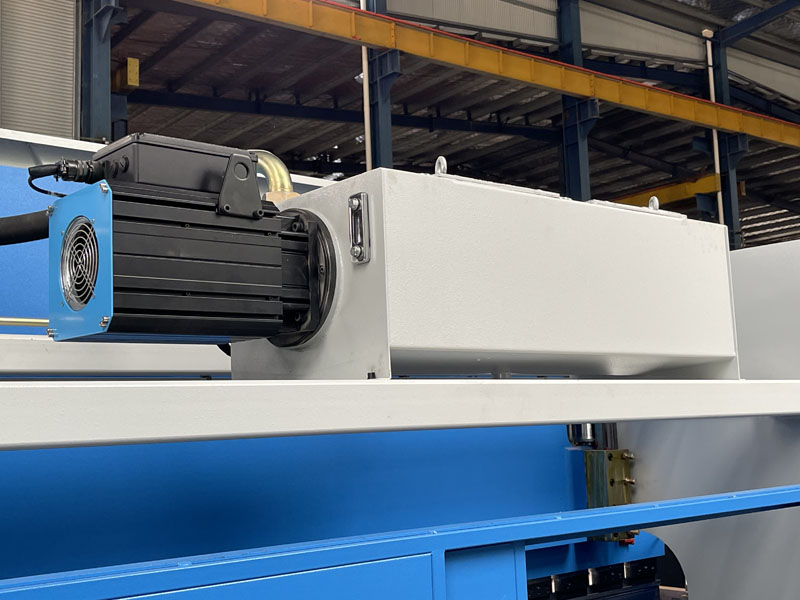

Main Motor:Servo motor (Optional)

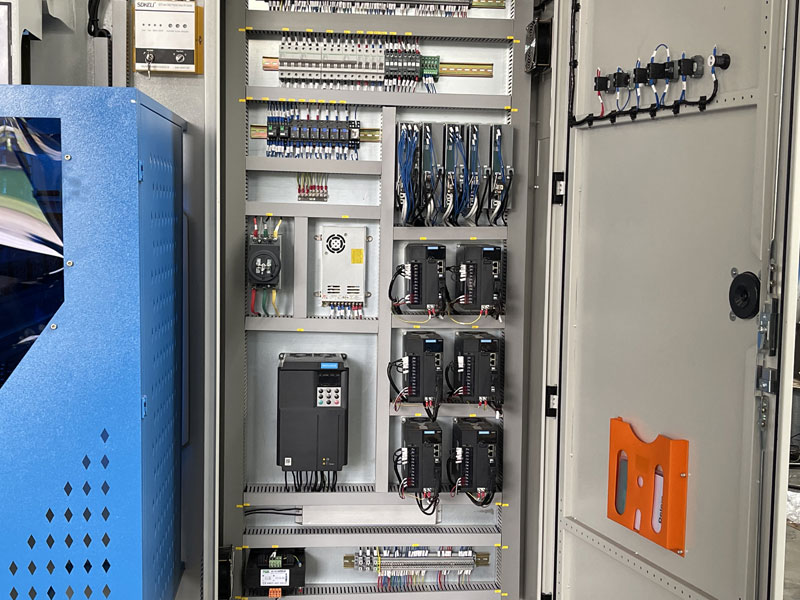

Electrics:Schneider ,France
Hydraulic Pump:SUNNY,USA
Foot switch:Karcon,South Korea
CNC Stop finger with double linear guide beam

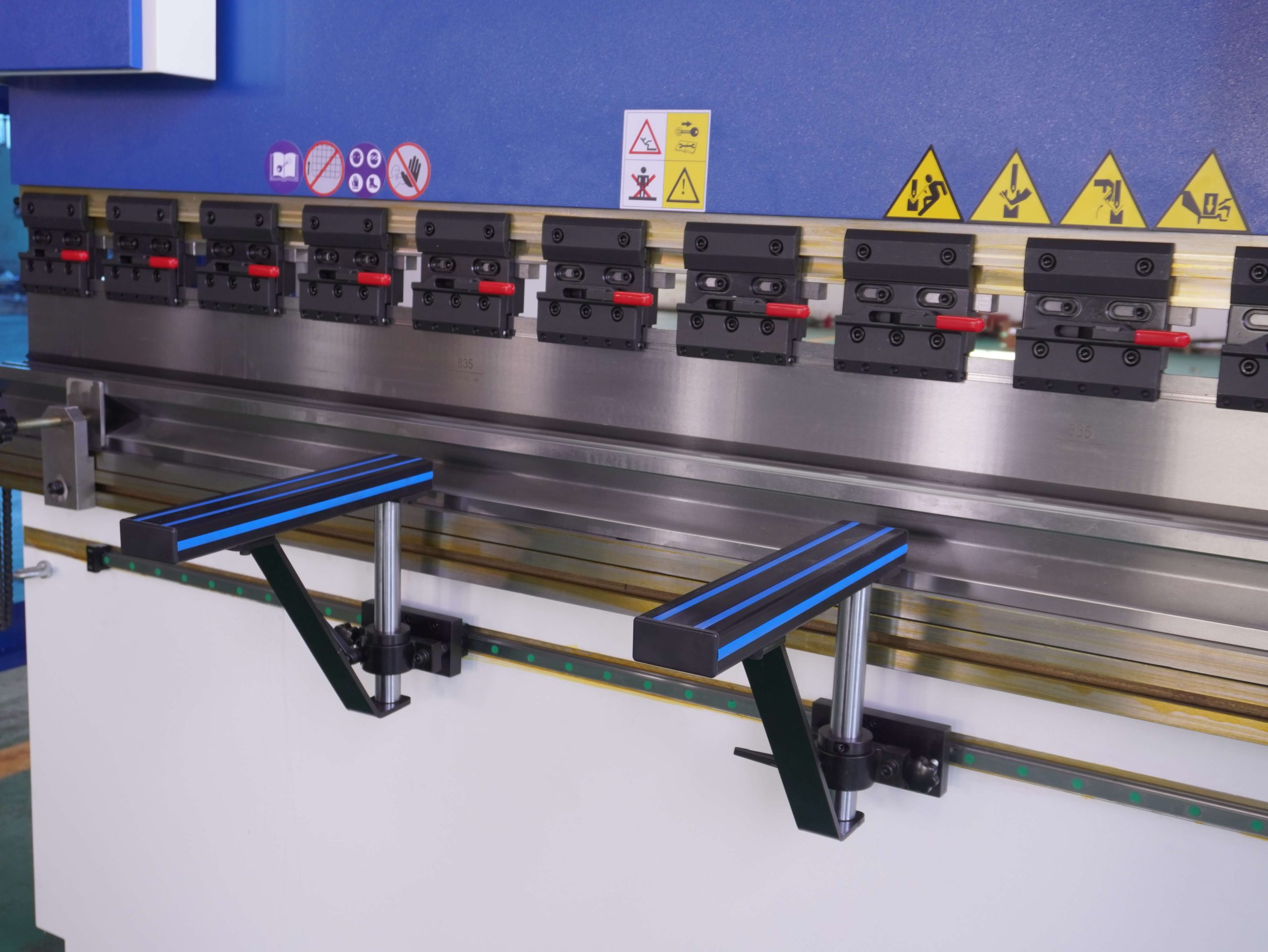

Plate Support Arm:Movable
Hydraulic & Electrical overload protection
Fence:Right & left guardrail $ Back (Optional)

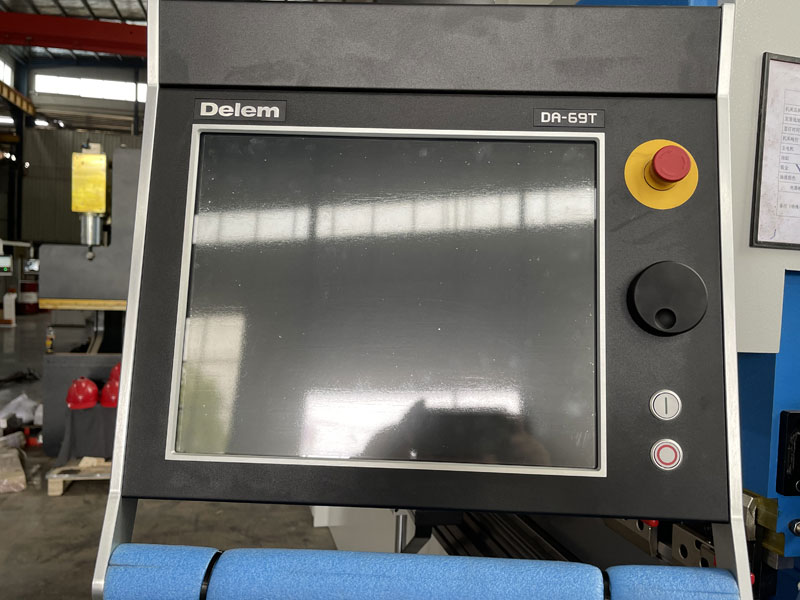

DA69T
● 3D and 2D graphical touch screen programming mode.
● 3D visualisation in simulation and production.
● 17″ high resolution colour TFT,
● Full Windows application suite.
● Delem Modusys compatibility (module scalbility and adaptivity).
● USB, peripheral interfacing.
● User specific application support within the controllers multitasking environment.
●Sensor bending & correction interface.

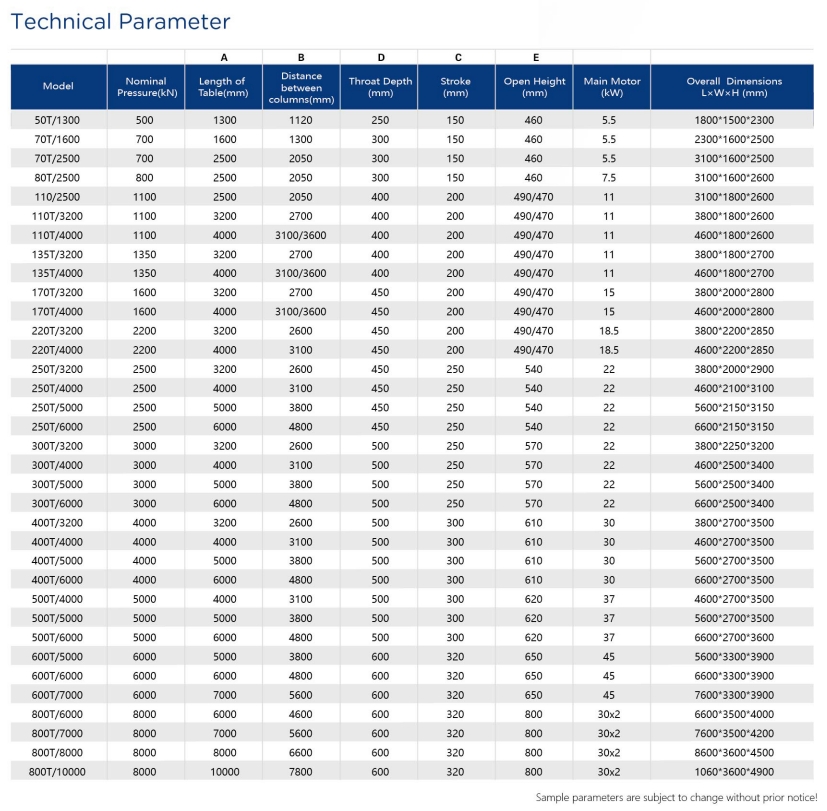

Parameter:

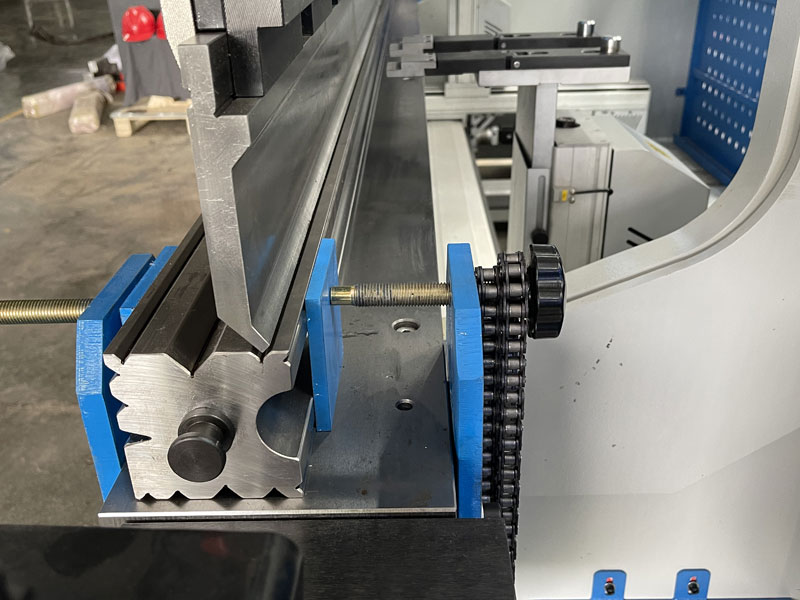

Molds
Customizable to suit your product
Quick clamps
Quick mold changes

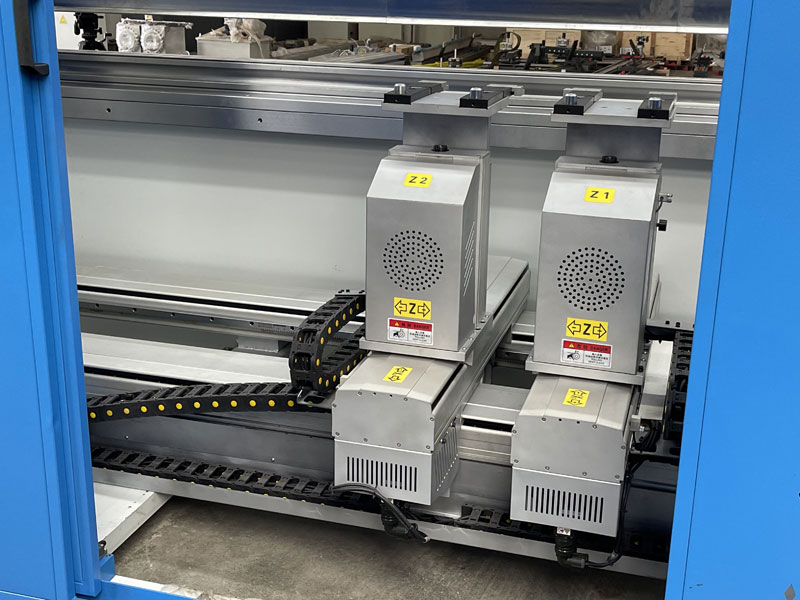

Backgauge
8 +1 Axis Y1 , Y2 , Z1 , Z2 , X1 , X2 , R1 , R2, +crowing. CNC Backgauge ,including the R1 R2 ; X1 X2 ; Z1 Z2 ,can move up and down ; front and back , left and right , the fine adjustment with high accuracy up to ± 0.02mm.

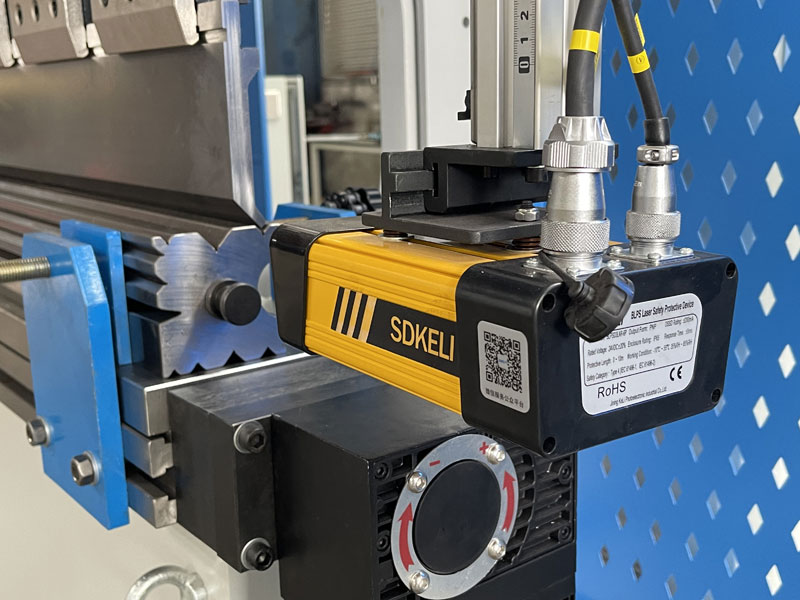

Laser Protection Device (optional)
It can effectively prevent the occurrence of pinching when working in fast mode. Good safety performance and long service life.
For more information, please contact me ~*^-^*
